Blogs...:): Displaying Data in a 3DChart with ASP.NET Web Pages using the Chart helper.

Creating a 3DChart from Data

The data you display in a chart can be from an array, from the results returned from a database, or from data that's in an XML file.you can do it using aspx pages/Razor/cshtml pages.

Chart Elements

Charts show data and additional elements like legends, axes, series, and so on. The following picture shows many of the chart elements that you can customize when you use the Chart helper. This article shows you how to set some (not all) of these elements.

Chart Healper

TheChart helper can render more than 30 types of charts, including all the types of charts that you might be familiar with from Microsoft Excel or other tools — area charts, bar charts, column charts, line charts, and pie charts, along with more specialized charts like stock charts.

Step 1:

you need to add the Dll for System.Web.Helpers.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.IO;
using System.Web.Helpers;

step 2:
Then you need to create the chart using the below code --C#.

protected void Page_Load(object sender, EventArgs e)
{
List<ChartData> objcountry = new List<ChartData>();
objcountry = GetCountryList();
var myChart = new Chart(width: 300, height: 300, theme: myTheme).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1", name: "shauraj").AddSeries(name: "Resource Utilization in Projects in Week 1", //markerStep: 1, xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" } Guid.NewGuid().ToString("N")
);
myChart.Save(Server.MapPath("~/Scripts/Column.png"), "PNG");
Image1.ImageUrl = "~/Scripts/Column.png";

var pie = new Chart(width: 300, height: 300, theme: myTheme).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1").AddSeries(name: "cpecial Like", chartType: "pie",//markerStep: 1, xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" }
);
pie.Save(Server.MapPath("~/Scripts/pie.png"), "PNG");
Image2.ImageUrl = "~/Scripts/pie.png";

var Area = new Chart(width: 300, height: 300, theme: myTheme).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1").AddSeries(name: "cpecial Like", chartType: "Area",//markerStep: 1, xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" }
);
Area.Save(Server.MapPath("~/Scripts/Area.png"), "PNG");
Image3.ImageUrl = "~/Scripts/Area.png";

var Bar = new Chart(width: 300, height: 300, theme: myTheme).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1").AddSeries(name: "cpecial Like", chartType: "Bar",//markerStep: 1, xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" }
);
Bar.Save(Server.MapPath("~/Scripts/Bar.png"), "PNG");
Image4.ImageUrl = "~/Scripts/Bar.png";

var Line = new Chart(width: 300, height: 300, theme: myTheme).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1").AddSeries(name: "cpecial Like", chartType: "Line", markerStep: 2, // xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" }
);
Line.Save(Server.MapPath("~/Scripts/Line.png"), "PNG");

Image5.ImageUrl = "~/Scripts/Line.png";
var Stock = new Chart(width: 300, height: 300, theme: Blue).AddLegend().SetXAxis("months").SetYAxis("Resource")
.AddTitle("Resource Utilization in Projects in Week 1").AddSeries(name: "cpecial Like", chartType: "Stock",//markerStep: 5, xField: "reeee",
xValue: objcountry.Select(x => x.months).ToArray(), //new[] { "Peter", "Andrew", "Julie", "Mary", "Dave" },
yValues: objcountry.Select(x => x.count).ToArray() //new[] { "2", "6", "4", "5", "3" }
);
Stock.Save(Server.MapPath("~/Scripts/Stock.png"), "PNG");

var myChart1 = new Chart(width: 300, height: 300, theme: myTheme).AddTitle("Resource Utilization in Projects in Week 1")
.AddSeries(name: "Project1", chartType: "StackedColumn", xValue: new[] { "W1", "W2", "W3", "W4", "W5" }, yValues: new[] { 80, 60, 40, 20, 10 })
.AddSeries(name: "Project2", chartType: "StackedColumn", xValue: new[] { "W1", "W2", "W3", "W4", "W5" }, yValues: new[] { 10, 10, 0, 10, 10 })
.AddSeries(name: "Available", chartType: "StackedColumn", xValue: new[] { "W1", "W2", "W3", "W4", "W5" }, yValues: new[] { "10", "30", "50", "70", "80" })
.AddLegend();
myChart1.Save(Server.MapPath("~/Scripts/Stock1.png"), "PNG");
Image7.ImageUrl = "~/Scripts/Stock1.png";
}
public List<ChartData> GetCountryList()
{
List<ChartData> objcountrty = new List<ChartData>();
objcountrty.Add(new ChartData { months = "jan", count = "10" });
objcountrty.Add(new ChartData { months = "feb", count = "40" });
objcountrty.Add(new ChartData { months = "mar", count = "25" });
objcountrty.Add(new ChartData { months = "apr", count = "25" });
objcountrty.Add(new ChartData { months = "may", count = "10" });
objcountrty.Add(new ChartData { months = "jun", count = "40" });
objcountrty.Add(new ChartData { months = "jul", count = "25" });
objcountrty.Add(new ChartData { months = "aug", count = "25" });
objcountrty.Add(new ChartData { months = "sep", count = "10" });
objcountrty.Add(new ChartData { months = "oct", count = "40" });
objcountrty.Add(new ChartData { months = "nov", count = "25" });
objcountrty.Add(new ChartData { months = "dec", count = "25" });
//objcountrty.Add(new ChartData { months = 4, count = "Bengaluru" });
//objcountrty.Add(new ChartData { months = 5, count = "Delhi" });
return objcountrty;
}
public class ChartData
{
public string months { get; set; }
public string count { get; set; }
}

Step3: you can add the default theme for the graph or you can create your custome 3D theme as well.

you can use the default properties as theme: ChartTheme.Green or you can create the your own theme s below and use it as "theme :myThemename ".

public const string myThemename =
@"<Chart BackColor=""#C9DC87"" BackGradientStyle=""TopBottom"" BorderColor=""181, 64, 1"" BorderWidth=""2"" BorderlineDashStyle=""Solid"" Palette=""BrightPastel"">
<ChartAreas>
<ChartArea Name=""Default"" _Template_=""All"" BackColor=""Transparent"" BackSecondaryColor=""White"" BorderColor=""64, 64, 64, 64"" BorderDashStyle=""Solid"" ShadowColor=""Transparent"">
<AxisY LineColor=""64, 64, 64, 64"">
<MajorGrid Interval=""Auto"" LineColor=""64, 64, 64, 64"" />
<LabelStyle Font=""Trebuchet MS, 8.25pt, style=Bold"" />
</AxisY>
<AxisX LineColor=""64, 64, 64, 64"">
<MajorGrid LineColor=""64, 64, 64, 64"" />
<LabelStyle Font=""Trebuchet MS, 8.25pt, style=Bold"" />
</AxisX>
<Area3DStyle LightStyle=""Simplistic"" Enable3D=""True"" Inclination=""30"" IsClustered=""False"" IsRightAngleAxes=""False"" Perspective=""10"" Rotation=""-30"" WallWidth=""0"" />
</ChartArea>
</ChartAreas>
<Legends>
<Legend _Template_=""All"" Alignment=""Center"" BackColor=""Transparent"" Docking=""Bottom"" Font=""Trebuchet MS, 8.25pt, style=Bold"" IsTextAutoFit =""True"" LegendStyle=""Row"">
</Legend>
</Legends>
<BorderSkin SkinStyle=""Emboss"" />
</Chart>";

public const string Blue =
@"<Chart BackColor=""#D3DFF0"" BackGradientStyle=""TopBottom"" BorderColor=""26, 59, 105"" BorderlineDashStyle=""Solid"" BorderWidth=""2"" Palette=""BrightPastel"">
<ChartAreas>
<ChartArea Name=""Default"" _Template_=""All"" BackColor=""Transparent"" BackSecondaryColor=""White"" BorderColor=""64, 64, 64, 64"" BorderDashStyle=""Solid"" ShadowColor=""Transparent"">
<AxisY LineColor=""64, 64, 64, 64"">
<MajorGrid Interval=""Auto"" LineColor=""64, 64, 64, 64"" />
<LabelStyle Font=""Trebuchet MS, 8.25pt, style=Bold"" />
</AxisY>
<AxisX LineColor=""64, 64, 64, 64"">
<MajorGrid LineColor=""64, 64, 64, 64"" />
<LabelStyle Font=""Trebuchet MS, 8.25pt, style=Bold"" />
</AxisX>
<Area3DStyle LightStyle=""Simplistic"" Enable3D=""True"" Inclination=""30"" IsClustered=""False"" IsRightAngleAxes=""False"" Perspective=""10"" Rotation=""-25"" WallWidth=""0"" />
</ChartArea>
</ChartAreas>
<Legends>
<Legend _Template_=""All"" Alignment=""Center"" BackColor=""Transparent"" Docking=""Bottom"" Font=""Trebuchet MS, 8.25pt, style=Bold"" IsTextAutoFit =""True"" LegendStyle=""Row"">
</Legend>
</Legends>
<BorderSkin SkinStyle=""Emboss"" />
</Chart>";

public const string Red = @"<Chart BackColor=""#58A5CB"" BackGradientStyle=""TopBottom"" BackSecondaryColor=""White"" BorderColor=""26, 59, 105"" BorderlineDashStyle=""Solid"" BorderWidth=""2"" Palette=""None"" PaletteCustomColors=""Red"">
<ChartAreas>
<ChartArea Name=""Default"" _Template_=""All"" BackColor=""64, 165, 191, 228"" BackGradientStyle=""TopBottom"" BackSecondaryColor=""White"" BorderColor=""64, 64, 64, 64"" BorderDashStyle=""Solid"" ShadowColor=""Transparent"" />
</ChartAreas>
<Legends>
<Legend _Template_=""All"" BackColor=""Transparent"" Font=""Trebuchet MS, 8.25pt, style=Bold"" IsTextAutoFit=""False"" />
</Legends>

<BorderSkin SkinStyle=""Emboss"" /> </Chart>";

step 3:above all the chart is created and saved as image, all we need to show that images to Enduser.

<form id="form1" runat="server">
<div>
<panel id="container">
<h1>3D chart</h1>
<asp:Image ID="Image1" runat="server" />
<asp:Image ID="Image2" runat="server" />
<asp:Image ID="Image3" runat="server" />
<asp:Image ID="Image4" runat="server" />
<asp:Image ID="Image5" runat="server" />
<asp:Image ID="Image6" runat="server" />
<asp:Image ID="Image7" runat="server" />
</panel>
</div>
</form>
-----------------------------------------------------------------------------------------------------------

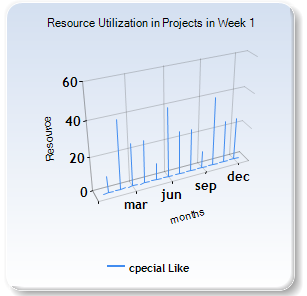

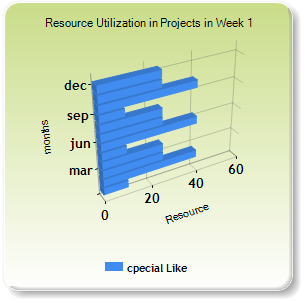

you will get Graph as

Column Chart
